Description

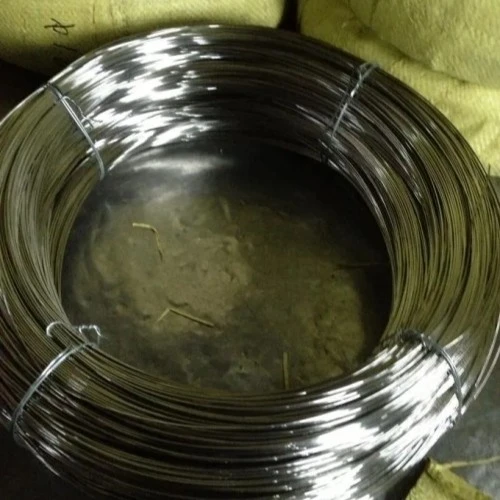

420 stainless steel wire, also known as SUS420J2 or 3Cr13, is a quintessential representative of martensitic stainless steel. It achieves a balance between hardness and corrosion resistance through its high carbon content (0.16%–0.40%) and chromium content (12%–14%). Its product forms encompass wire rod, spring wire, and coated wire, finding extensive application in cutlery, medical instruments, and industrial wear-resistant components.
|
international standards |
||||
|
ASTM |
GB |
EN |
DIN |
JIS |
|
S42000 |
GB/T 1220-2007 |
X30Cr13 |
1.4028 |
SUS420J2 |
|
30Cr13 |
||||
Chemical composition
Chemical composition % by mass MAX unless otherwise stated
|
Element |
Min% |
Max% |
|
C |
0.15 |
0.40 |
|
Si |
- |
1.00 |
|
Mn |
- |
1.00 |
|
P |
- |
0.04 |
|
S |
- |
0.03 |
|
Cr |
12.00 |
14.00 |
|
Ni |
- |
0.75 |
|
Others |
- |
- |
Alloy Details
Mechanical Properties
- Hardness: Annealed state ≤223 HB; Quenched and tempered state reaches 50-55 HRC (maximum up to 60 HRC)
- Strength: Tensile strength ≥635 MPa (reaches 800-1000 MPa after quenching)
- Elongation: Annealed state ≥20%; Quenched state ≥10%
Corrosion Resistance
- Suitable Environments: Atmospheric conditions, fresh water, weak acids/alkalis (e.g., perspiration, soapy water)
- Limitations: Not resistant to salt water, seawater, or highly corrosive media (e.g., chloride-ion environments). Passivation treatment is required to enhance corrosion resistance.
Application
Medical Devices
- Examples: Surgical instruments, dental tools
- Advantages: Magnetic compatibility with sterilisation processes; excellent biocompatibility after polishing
Industrial Wear Parts
- Examples: Hydraulic system components
- Advantages: Enhanced wear resistance through high carbon-chromium ratio; suitable for low-corrosion environments
Automotive and Light Industry
- Examples: Wiper shafts, textile machinery springs
- Advantages: Resistant to oil contamination and humid conditions; lower cost than 304 stainless steel
